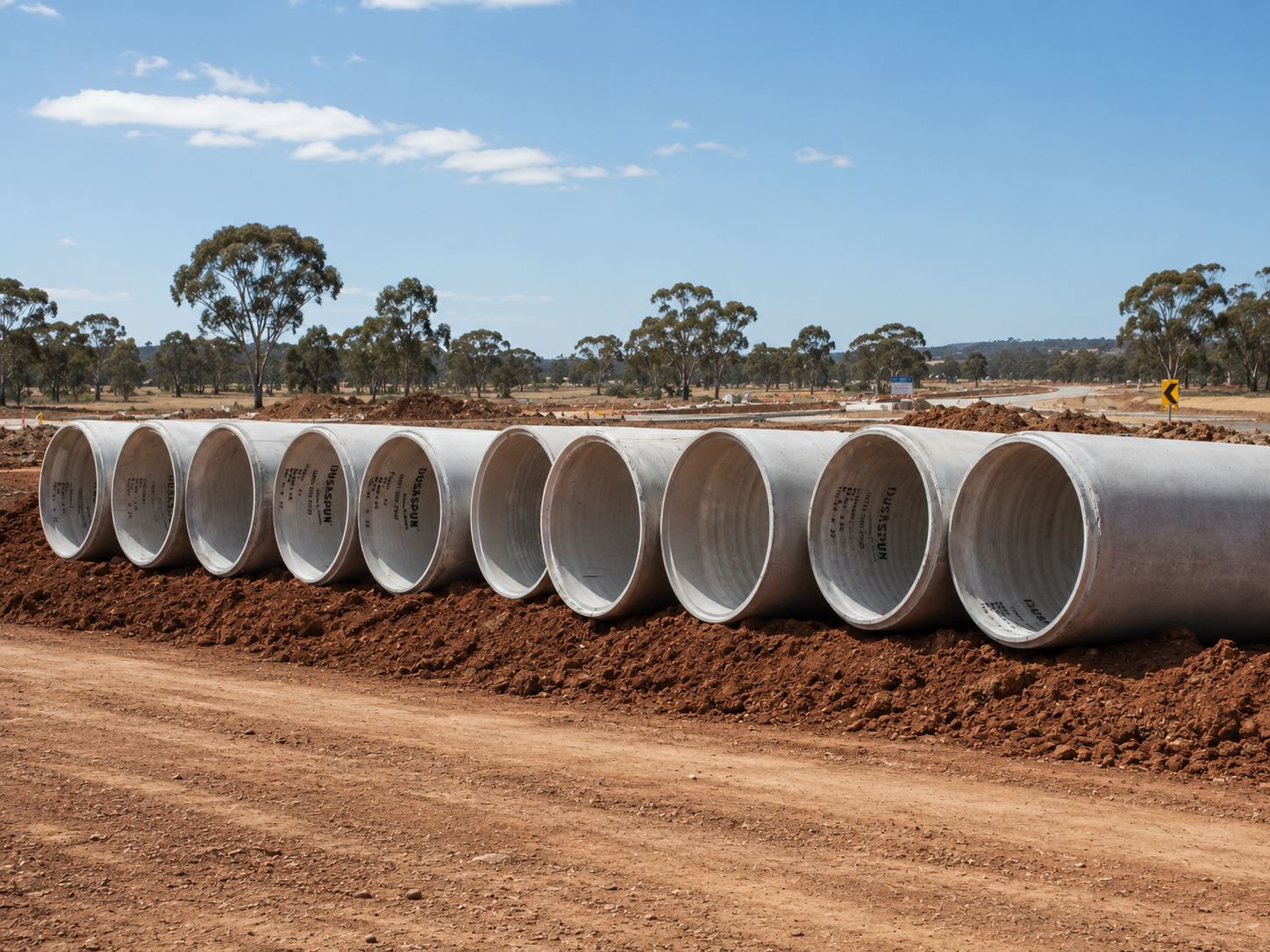

Supplied by DUSASPUN
Reinforced Concrete
Pipe (RCP)
Empire Infrastructure supplies DUSASPUN reinforced concrete pipe (RCP) for open trench and jacking installations, DN300 to DN1650, on a standard nine week lead time. Manufactured under ISO 9001 certification and engineered to AS/NZS 4058.
Why DUSASPUN
Reliable supply, built in
Program Certainty
Nine weeks from order confirmation to Australian port. That is a date, not a range. Send Empire your pipe schedule and the team will confirm against your program without the back-and-forth.
Engineered to Any Diameter
DUSASPUN can design and produce any internal or external diameter. Load class can be adjusted up to Class 10 to suit your project. The final design follows the approved drawing as submitted.
Certified Quality
Manufactured to AS/NZS 4058 under ISO 9001 certification (LRQA). Every rubber ring joint is tested for watertightness above 90kPa before it leaves the factory.
The Product
RRJ type
reinforced concrete pipe
DUSASPUN reinforced concrete pipe (RCP) is supplied by Empire Infrastructure for open trench and jacking installations across Australia and New Zealand. Each pipe uses a socketed L-Skid joint with rubber gasket, compliant with AS 1646 and tested for watertightness above 90kPa before despatch.
Steel reinforcement is manufactured to ASTM A.496-90a and AS 1303, cement to ASTM C150 Type I, and aggregates to ASTM C33/C33M. The standard range runs DN300 to DN1650 at a Class 2 proof load rating, with higher load classes available up to Class 10 and any non-standard diameter engineered on request.
DUSASPUN RCP is also available as reinforced concrete jacking pipe on the same nine week lead time window, for trenchless and microtunnelling drives across any diameter in the standard range.
Specifications
DUSASPUN RCP at a glance
The summary below covers the standard DUSASPUN RCP range supplied by Empire. Full dimensional data for every diameter is in the size table below.
| Parameter | Specification |
|---|---|
| Diameter Range | DN300 to DN1650, any diameter on request |
| Joint | RRJ type, socketed L-Skid with rubber gasket |
| Effective Length | 2450mm across the full range |
| Load Class | Class 2 standard, up to Class 10 on request |
| Lead Time | Nine weeks from order confirmation to Australian port |
| Quality | AS/NZS 4058, ISO 9001 certified by LRQA |
Note: Confirm diameter, load class, joint configuration and delivery program with Empire’s technical team against your project drawings and specification. The contractor remains responsible for compliance with local regulations and for applying appropriate safety factors.
Datasheets, brochures and technical documents for DUSASPUN reinforced concrete pipe are available to download in the Empire Engineer Portal. Go to the Engineer Portal
Size Table
Standard size range
RRJ type, socketed L-Skid joint with rubber gasket. Effective length 2450mm across the full range. Proof load shown is Class 2. Filter by diameter, or sort any column. Higher load classes are available up to Class 10, and custom diameters on request.
| Nominal diameter | External dia (mm) | Wall (mm) | Effective length (mm) | Total length (mm) | Weight (kg) | Proof load (kN/m) | Request |
|---|---|---|---|---|---|---|---|
| DN300 | 374 | 37 | 2450 | 2534 | 269 | 15 | Quote DN300 |
| DN375 | 484 | 54.5 | 2450 | 2538 | 464 | 17 | Quote DN375 |
| DN450 | 592 | 71 | 2450 | 2554 | 736 | 21 | Quote DN450 |
| DN525 | 710 | 92.5 | 2450 | 2557 | 1,126 | 25 | Quote DN525 |
| DN600 | 710 | 55 | 2450 | 2557 | 788 | 26 | Quote DN600 |
| DN700 | 820 | 60 | 2450 | 2561 | 997 | 30 | Quote DN700 |
| DN800 | 930 | 65 | 2450 | 2565 | 1,232 | 34 | Quote DN800 |
| DN900 | 1040 | 70 | 2450 | 2577 | 1,503 | 37 | Quote DN900 |
| DN1050 | 1270 | 110 | 2450 | 2590 | 2,664 | 45 | Quote DN1050 |
| DN1200 | 1390 | 95 | 2450 | 2610 | 2,838 | 46 | Quote DN1200 |
| DN1300 | 1500 | 100 | 2450 | 2610 | 3,233 | 49 | Quote DN1300 |
| DN1500 | 1714 | 107 | 2450 | 2610 | 3,951 | 54 | Quote DN1500 |
| DN1650 | 1867 | 109 | 2450 | 2610 | 4,368 | 58 | Quote DN1650 |
DUSASPUN has the capacity to design and produce any internal or external pipe diameter. Dimensions may be adjusted based on the load class required, and the fixed design follows the approved drawing as submitted. Load class complies with AS/NZS 4058 and can be customised up to Class 10 according to project requirements. The contractor is responsible for ensuring compliance with local regulations and applying appropriate safety factors.
Applications
Standards and
materials
Every DUSASPUN pipe supplied by Empire is manufactured under ISO 9001 certification, to the standards and material specifications below.
| Product standard | AS/NZS 4058: Precast concrete pipes, pressure and non-pressure. |
| Cement type | ASTM C150 Type I, or other classes as stated in ASTM C150. |
| Steel reinforcement | ASTM A.496-90a deformed steel wire, and AS 1303 hard-drawn steel reinforcing wire. |
| Aggregates | ASTM C33/C33M: Standard specification for concrete aggregates. |
| Rubber gasket | AS 1646 elastomeric seals. Joint watertightness tested above 90kPa before despatch. |
| Quality management | ISO 9001, certified by LRQA. |
In the Field

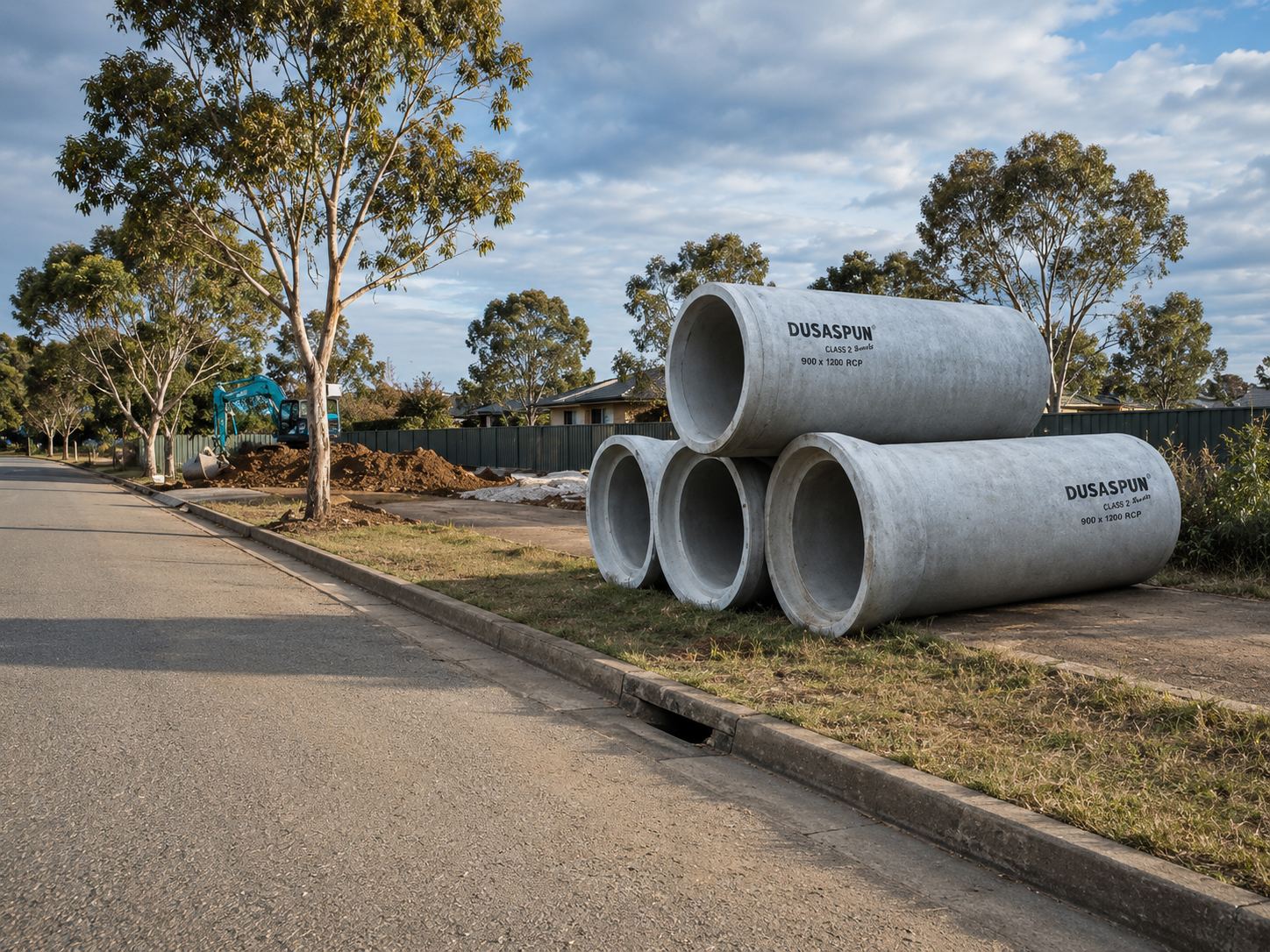

DUSASPUN on site
Frequently Asked Questions
Common questions on
DUSASPUN RCP
Quotes & Proposals
Lock in your pipe supply.
Do not let pipe supply slow your project down. Tell Empire your product, diameter, quantity and location, and the team will respond with a date and a quote. Typically within one business day.
