Reinforced Concrete Pipe.
Nine Weeks. Any Diameter.
Empire Infrastructure supplies DUSASPUN reinforced concrete pipe (RCP) for open trench and jacking installations, DN300 to DN1650, on a standard nine week lead time. Manufactured under ISO 9001 certification and engineered to AS/NZS 4058. Any diameter, on your program.
Why DUSASPUN
Reliable supply, built in
Program Certainty
Nine weeks from order confirmation to Australian port. That is a date, not a range. Send Empire your pipe schedule and the team will confirm against your program without the back-and-forth.
Engineered to Any Diameter
DUSASPUN can design and produce any internal or external diameter. Load class can be adjusted up to Class 10 to suit your project. The final design follows the approved drawing as submitted.
Certified Quality
Manufactured to AS/NZS 4058 under ISO 9001 certification (LRQA). Every rubber ring joint is tested for watertightness above 90kPa before it leaves the factory.
The Product
RRJ type
reinforced concrete pipe
DUSASPUN reinforced concrete pipe (RCP) is supplied by Empire Infrastructure for open trench and jacking installations across Australia and New Zealand. Each pipe uses a socketed L-Skid joint with rubber gasket, compliant with AS 1646 and tested for watertightness above 90kPa before despatch.
Steel reinforcement is manufactured to ASTM A.496-90a and AS 1303, cement to ASTM C150 Type I, and aggregates to ASTM C33/C33M. The standard range runs DN300 to DN1650 at a Class 2 proof load rating, with higher load classes available up to Class 10 and any non-standard diameter engineered on request.
DUSASPUN RCP is also available as reinforced concrete jacking pipe on the same nine week lead time window, for trenchless and microtunnelling drives across any diameter in the standard range.
Full Specifications
Standard size range
RRJ type, socketed L-Skid joint with rubber gasket. Effective length 2450mm across the full range. Proof load shown is Class 2. Higher load classes available on request up to Class 10. Custom diameters available on request.
| Product Code | Int. Dia (mm) | Ext. Dia (mm) | Wall (mm) | Eff. Length (mm) | Total Length (mm) | Weight (kg) | Proof Load (kN/m) |
|---|---|---|---|---|---|---|---|
| 1A.0300B01 | 300 | 374 | 37 | 2450 | 2534 | 269 | 15 |
| 1A.0375B01 | 375 | 484 | 54.5 | 2450 | 2538 | 464 | 17 |
| 1A.0450B01 | 450 | 592 | 71 | 2450 | 2554 | 736 | 21 |
| 1A.0525B01 | 525 | 710 | 92.5 | 2450 | 2557 | 1126 | 25 |
| 1A.0600B01 | 600 | 710 | 55 | 2450 | 2557 | 788 | 26 |
| 1A.0700B01 | 700 | 820 | 60 | 2450 | 2561 | 997 | 30 |
| 1A.0800B01 | 800 | 930 | 65 | 2450 | 2565 | 1232 | 34 |
| 1A.0900B01 | 900 | 1040 | 70 | 2450 | 2577 | 1503 | 37 |
| 1A.1050B01 | 1050 | 1270 | 110 | 2450 | 2590 | 2664 | 45 |
| 1A.1200B01 | 1200 | 1390 | 95 | 2450 | 2610 | 2838 | 46 |
| 1A.1300B01 | 1300 | 1500 | 100 | 2450 | 2610 | 3233 | 49 |
| 1A.1500B01 | 1500 | 1714 | 107 | 2450 | 2610 | 3951 | 54 |
| 1A.1650B01 | 1650 | 1867 | 109 | 2450 | 2610 | 4368 | 58 |
Note: DUSASPUN has the capacity to design and produce any internal or external pipe diameter. Dimensions may be adjusted based on the load class required, and the fixed design follows the approved drawing as submitted. Load class complies with AS/NZS 4058 and can be customised up to Class 10 according to project requirements. The contractor is responsible for ensuring compliance with local regulations and applying appropriate safety factors. Contact Empire Infrastructure's technical team for full specification support.
Datasheets, brochures and technical documents for DUSASPUN reinforced concrete pipe are available to download in the Empire Engineer Portal. Go to the Engineer Portal
Quick Reference
Check a diameter
Select a DN to see key specifications and confirm availability. For project-specific advice, detailed specification support, or custom diameters, contact Empire's technical team.
Pipe Availability Tool
Select a diameter to check specifications and lead time
Specifications shown are Class 2 standard. Custom diameters and load classes up to Class 10 are available on request. Contact Empire for jacking pipe specifications, custom diameter enquiries, and project program support.
Detailed engineering tools are available through the Empire Engineer Portal.
Standards & Materials
Built to
AS/NZS 4058
Every DUSASPUN pipe supplied by Empire Infrastructure is manufactured under ISO 9001 certification, to the standards and material specifications below.
| Product Standard | AS/NZS 4058: Precast concrete pipes (pressure and non-pressure) |
| Cement Type | ASTM C150 Type I, or other classes as stated in ASTM C150 |
| Steel Reinforcement | ASTM A.496-90a: Deformed steel wire for concrete reinforcement AS 1303: Hard-drawn steel reinforcing wire for concrete |
| Aggregates | ASTM C33/C33M: Standard specification for concrete aggregates |
| Rubber Gasket (L-Skid) | AS 1646: Elastomeric seals for waterworks purposes Joint watertightness tested above 90kPa before despatch |
| Quality Management | ISO 9001 (certified by LRQA) |

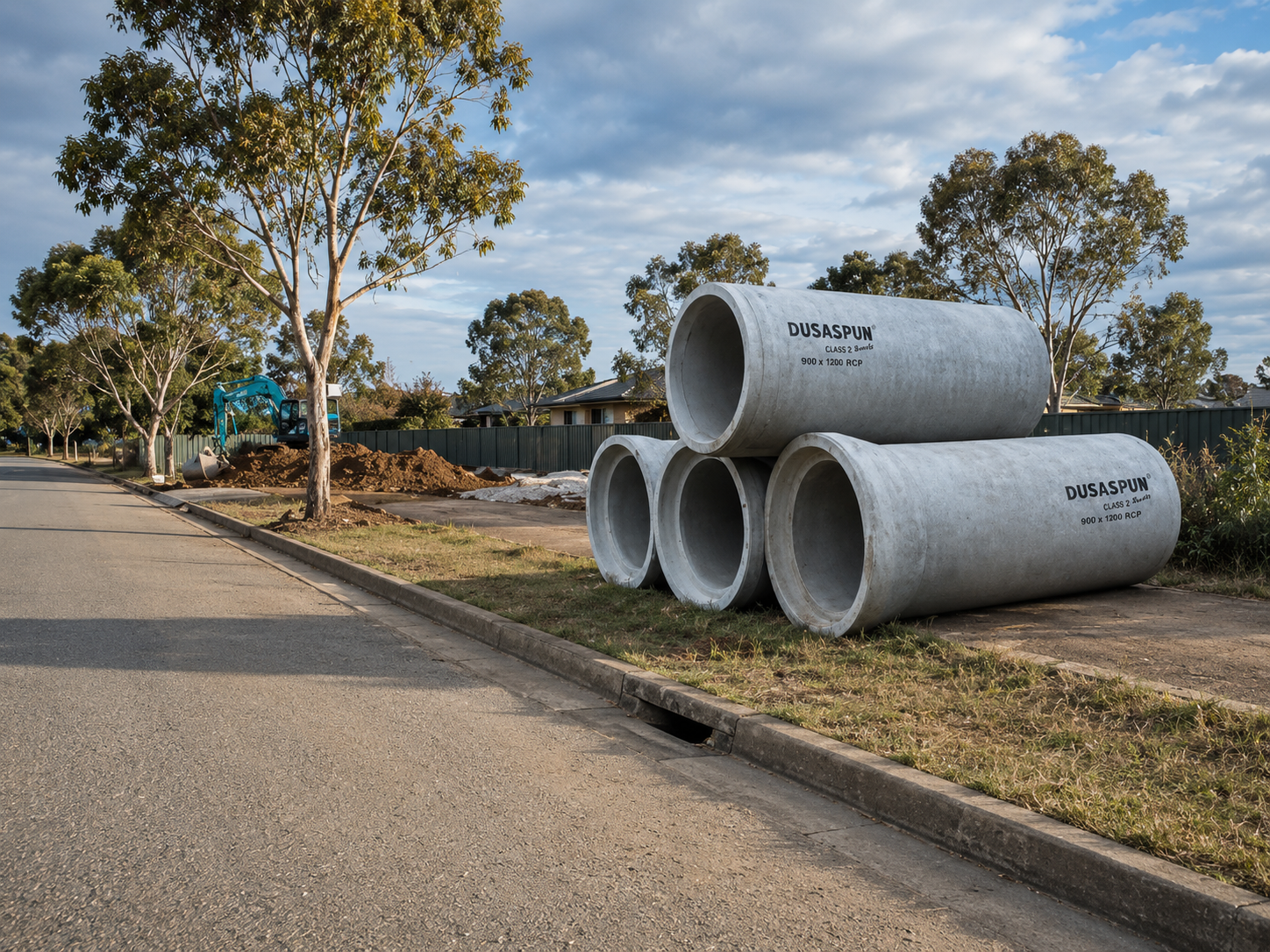

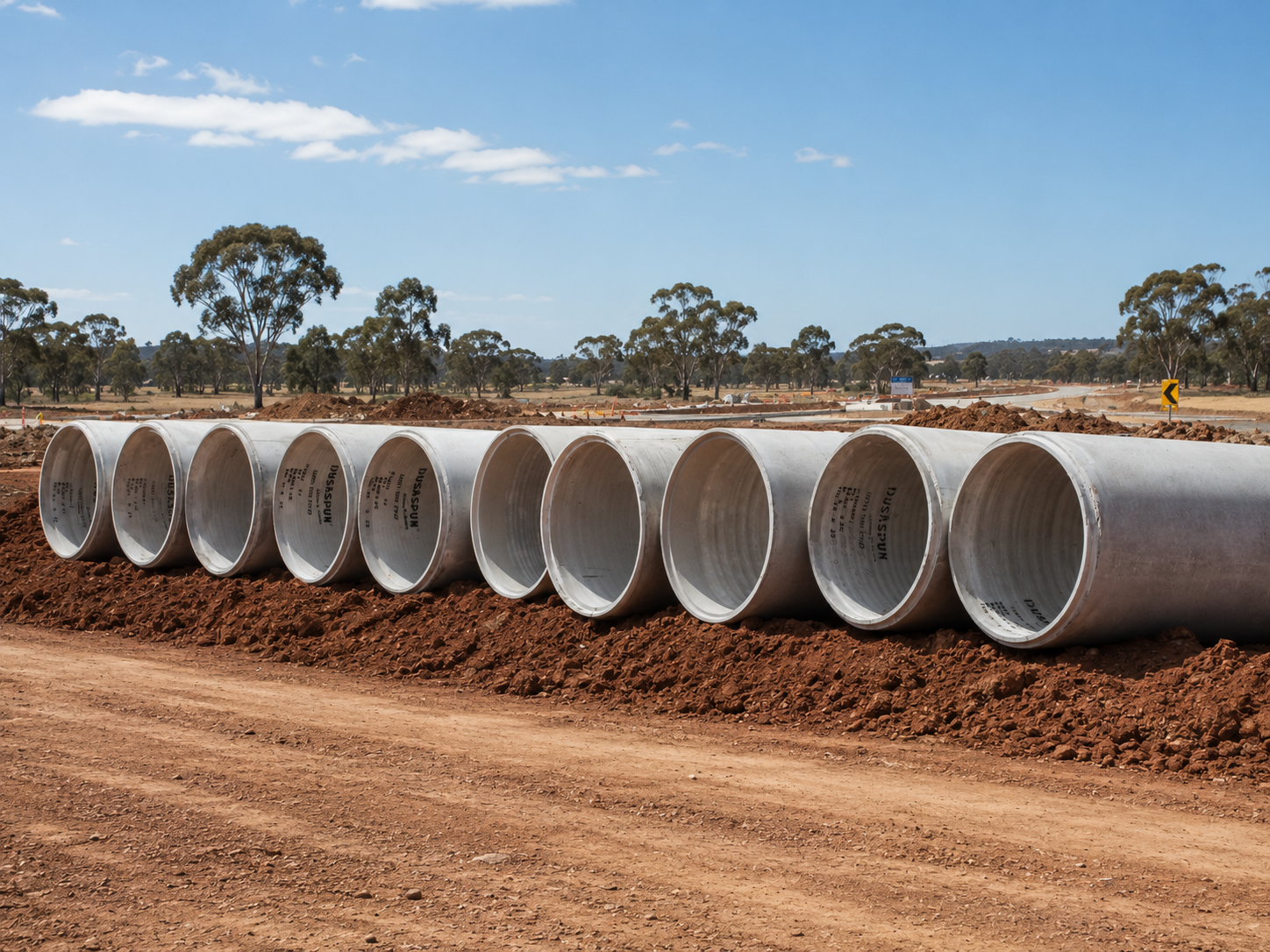

In the Field
DUSASPUN on site
Frequently Asked Questions
Common questions on
DUSASPUN RCP
Pricing & Proposals
Lock in your pipe supply.
Do not let pipe supply slow your project down. Tell Empire your product, diameter, quantity, and location, and the team will respond with a date and a quote. Typically within one business day.
